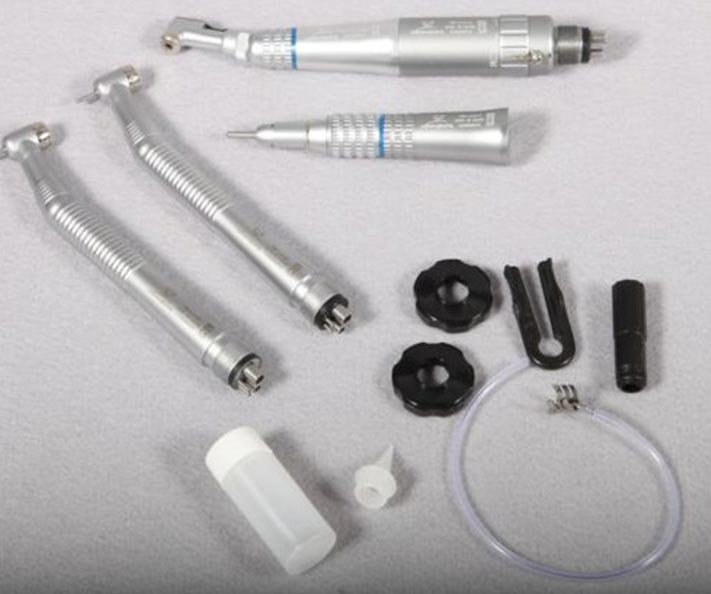

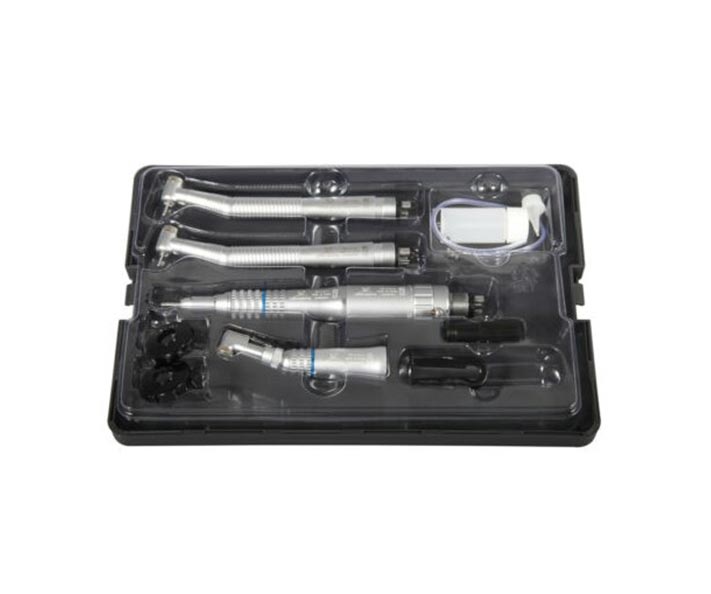

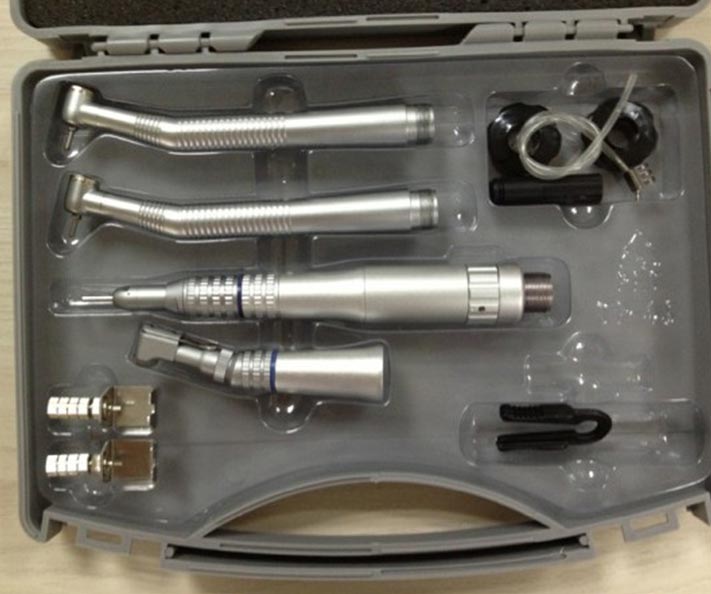

High and Low Speed Handpiece Set

NSK style Pana Air high speed handpiece

Standard push button handpiece

Single water spray

Air pressure:0.2~0.24Mpa

Rotation speed:≥360,000rpm

Bur applicable: Φ1.59mm~Φ1.6mmx21mm~Φ23mm(Diameter*Length)

Noise≤68dB

It has unique appearance design and fluent outline.

Smooth as silk, it has excellent texture.

With people-friendly design, easy for operation.

With best quality cartridge, easier for cleaning.

With high-speed turbine rotation, it has better performances.

It is noise-free and stable.

Special for operations such as clamping high-speed dentistry machine needle to drill and grind teeth in department of stomatology, it is more professional.

Contra angle handpiece

Low Speed 22,000-27,000 rpm.

The shank of the instrument mounted therein is 2.35 mm

Fastening of the instruments with a turning latch

Autoclavable 135°

For any lab or E-type motors

Straight Nosecone

Working pressure: 0.3MPa; 0.25MPa (Measure meter is installed at the end of air motor to measure the air pressure).

Revolution: about 22000-27000r/min (adjustable between clockwise or anticlockwise)

Noise: ≤68dB

Air consumption: about 56L/mi

Ratio: 1:1

Max speed of contra angle: 25000rpm/min.

Air Mortor EX-203C

Supply air pressure: 245-392KPa (2.5-4kgf/CM2)

1:1 Direct Drive

Max speed 20,000 min-1
